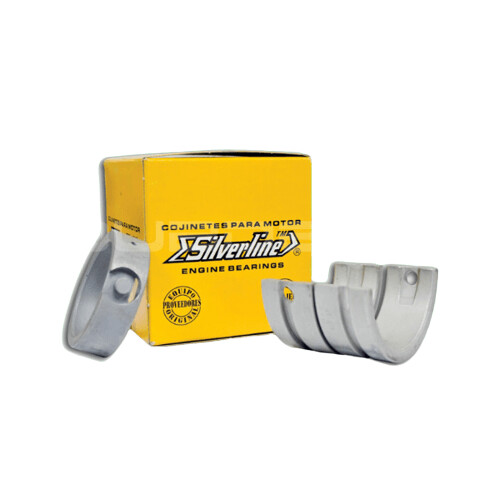

Main Bearing Set, T1 Beetle Case, 40HP to 1600cc, STD/STD

Description

Main bearing set. Silverline steel backing on an aluminum face.
Standard case/Standard crank/Standard thrust

To suit

40HP to 1600cc T1 Engine Case

T1 Beetle 1961 to 1979
Karmann Ghia 1961 to 1974
T2 Splitscreen to 1967
T2 Kombi 1600cc 1968 to 1979
Type 3 1962 to 1973

Quality

Excellent quality

PLEASE NOTE
To determine the correct bearings you require you will need to measure your crankshaft and engine case.

If you are replacing old bearings without machining your crank or case, you just measure the old bearings to determine their sizes.
If you are having the crank and/or case machined, find out from your machinist what size they have been machined too.\n

Finally, many old cases have had the thrust surface of the rear main bearing cut, so this requires a special OVERSIZED thrust. The standard size between the two flanges on the rear main is 22mm. Oversized thrust are available in plus 1mm and plus 2mm. This is identified with a "OS" at the end of the part number.\n
